ZIP SCREeN SHADES

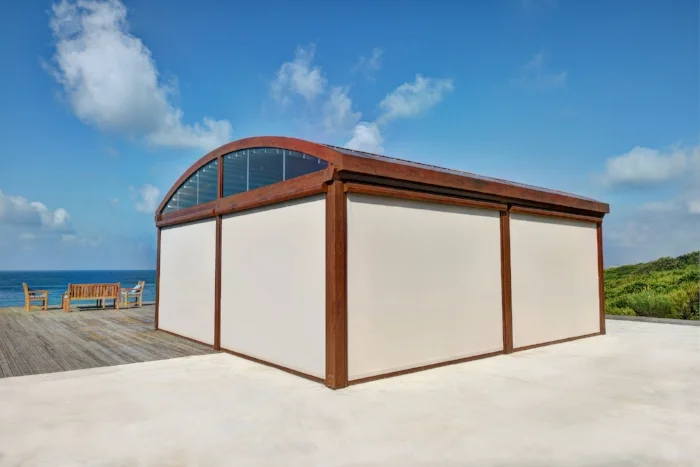

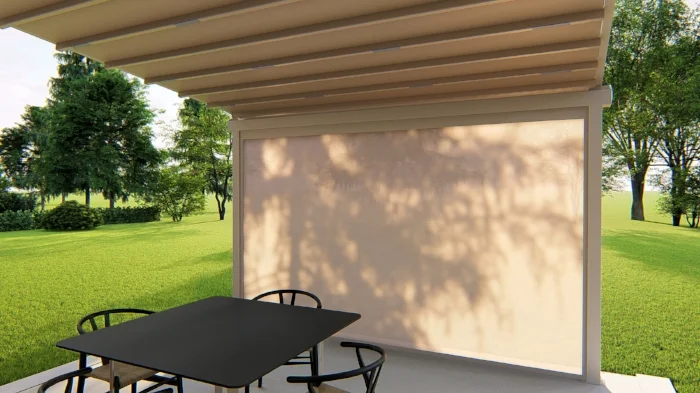

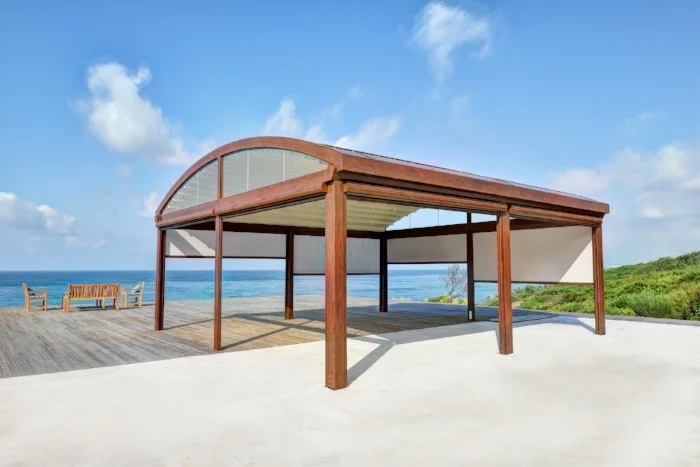

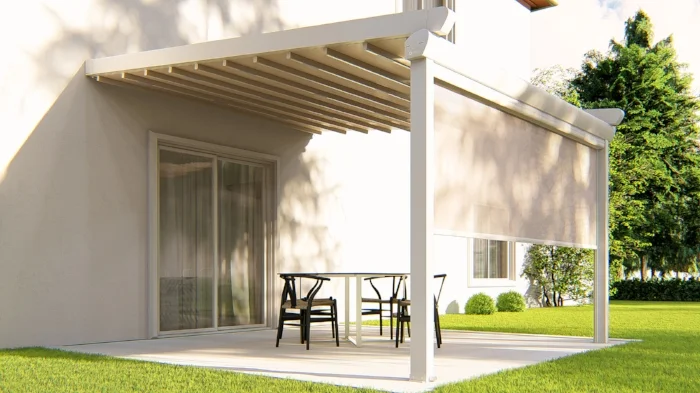

Motorized Zip Screen Shade works as outdoor blinds that provide privacy and protection against sun, heat, wind, rain and insects. This add on aesthetically complements Pergola Roof awning systems by fully enclosing your patio, balcony or terrace, and retracts with a remote control. It withstands strong winds up to 70 miles, provides micro air circulation and water resistance.


Materials

Fabric / Composite

Soltis Perform 92 is a 4% open mesh and an advanced thermal shield. It blocks up to 97% of heat in external window applications. This micro-perforated screen offers the best thermal performance while maintaining outward visibility.

Thanks to Précontraint technology both Horizon 86 and Perform 92 have outstanding dimensional stability. They are environmentally friendly and recyclable.

Technical specifications

value standards
weight 12.4 oz/yd2 EN ISO 2286-2
thickness 0.45 mm/ 450 microns
width 69.7 in - 105.1 in
standard format length 69.7" width: 54.6 yds; 105.1" width: 43.7 yds
tensile strength (warp/weft) 310/210 daN/ 5 cm EN ISO 1421
tear strength (warp/weft) 45/20 daN DIN 53.363
flame retardancy METHOD 1/ NFPA 701 CSFM T19 CLASS A/ ASTM E84
warranty 5 years

Soltis Horizon 86 is a 14% open mesh composite that offers the best outward visibility with a level of up to 28% natural light transmission.

Technical specifications

value standards
weight 11.2 oz/yd2 EN ISO 2286-2
thickness 0.45 mm/ 450 microns
width 69.7 in - 105.1 in
standard format length 69.7" width: 54.68 yds; 105.1" width: 43.74 yds
tensile strength (warp/weft) 230/160 daN/ 5 cm EN ISO 1421
tear strength (warp/weft) 45/20 daN DIN 53.363
flame retardancy METHOD 1/ NFPA 701 CSFM T19 CLASS A/ ASTM E84
warranty 5 years

96 - 1103  Cream

96 - 1103 Cream

96 - 2047  Anthracite

96 - 2047 Anthracite

86 - 2047  Anthracite

86 - 2047 Anthracite

92 - 2135  Sandy beige

92 - 2135 Sandy beige

86 - 2046  Alu/Oat

86 - 2046 Alu/Oat

W96 - 2047  Anthracite

W96 - 2047 Anthracite

W96 - 1103  Cream

W96 - 1103 Cream

92 - 2043  Bronze

92 - 2043 Bronze






We can price your project for you...
